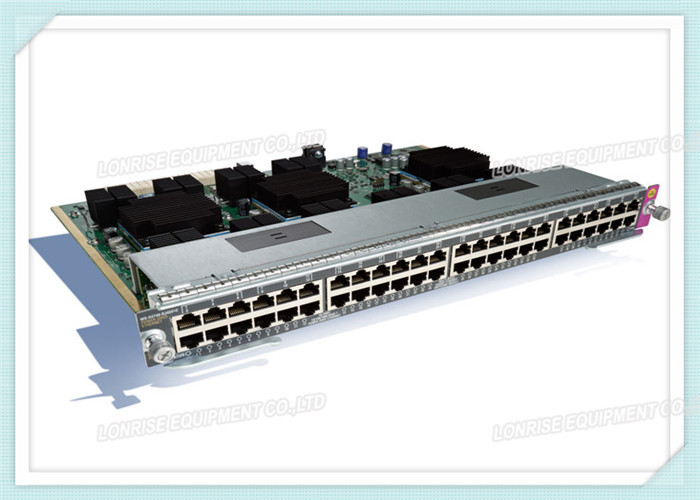

High Performance Cisco SPA Card WS-X4748-RJ45-E 4500 E-Series Line Card

Brand Name : Cisco

Model Number : WS-X4748-RJ45-E

Certification : CE

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal, Alipay, Wechat

Supply Ability : 30 Pieces per month

Delivery Time : 1~2 days

Packaging Details : NEW IN BOX

Brand : Cisco

Model : WS-X4748-RJ45-E

Ports : 48 * 10/100/1000 Gigabit Ethernet ports

Chassis Support : 4503-E/4506-E/4507R+E/4510R+E/4507R-E/4510R-E

Line-Card Type : Cisco catalyst 4500 E-series line card

Contact Now

CISCO WS-X4748-RJ45-E 4500 E-Series Line Card

Overview

Cisco catalyst WS-X4748-RJ45-E line-card is designed for data only user access with 48 non-POE ports. WS-X4748-RJ45-E delivers high-performance and secures user experience with superior backward and forward compatibility to process large file transfers and network backups for campus and branch applications. This WS-X4748-RJ45-E is similar with the WS-X4748-RJ45-E=. The WS-X4748-RJ45-E= is a spare one.

High Performance Cisco SPA Card WS-X4748-RJ45-E 4500 E-Series Line Card

Specifications:

WS-X4748-RJ45-E Specifications
Port Information
Type E-Series 10/100/1000/Multigigabit Line Cards
Number of Ports 48
Port Speed 10/100/1000
Port Type RJ-45
Wire Rate 1:1
Feature
Standards

● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az

● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology

● Gigabit EtherChannel: All 1000 Mbps ports

● 10 Gigabit EtherChannel: All 10Gbps ports

● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

● Port Aggregation Protocol (PagP): Yes

● Number of ports per tuple: 8

● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions

● Occupies one slot in the Cisco Catalyst 4500 Series platform

● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions

● Operating temperature: 32° to 104°F (0° to 40°C)

● Storage temperature: -40° to 167°F (-40° to 75°C)

● Relative humidity: 10 to 90%, noncondensing

● Operating altitude: -60 to 3000m
Safety Conditions Fiber optic lasers: Class 1 laser products
Safety Certifications

● UL 1950

● EN 60950

● CSA-C22.2 no 950

● IEC 950

● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications

● FCC 15J Class A

● VCCI Class A

● CE Marking

● EN 55022 Class A

● EN 55024 Class A

● CISPR 22 Class A

● AS/NZ 3548

● NEBS Level 3 (GR-1089-CORE, GR-63-CORE)

● ETSI ETS-300386-2

● EN 50121-4
ROHS Compliance ROHS5
Power and MTBF Information
Max Rated Power (W) 75
Rated MTBF (Hours) 402,386

Other related products:

WS-X4724-SFP-E
WS-X4748-SFP-E
WS-X45-SUP7L-E
WS-X4648-RJ45-E
WS-X4648-RJ45V+E
WS-X4748-RJ45-E
WS-X4748-RJ45V+E
WS-X4448-GB-SFP
WS-X45-SUP7-E
