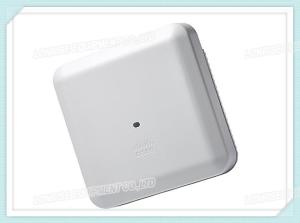

AIR-AP3802I-H-K9 Cisco Indoor Wireless Access Point With Integrated Antennas

  • 1
  • 2

Brand Name : Cisco

Model Number : AIR-AP3802I-H-K9

Certification : CE

Place of Origin : China

MOQ : 1UNIT

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 50 Units/Month

Delivery Time : 2-3days

Packaging Details : NEW IN BOX

Product Name : CISCO Wireless Access Point

Product Model : AIR-AP3802I-H-K9

Antennas : Internal Antennas

System memory : 1024 MB DRAM , 256 MB flash

Warranty : 2 years

Lead Time : within 2 - 3 days after received payment

Contact Now

AIR-AP3802I-H-K9 Cisco Indoor Wireless Access Point with Integrated Antennas

1 . Overview:

AIR-AP3802I-H-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802I-H-K9 is designed for Indoor, challenging environments, with internal antennas. Besides, it provides H regulatory domain.

2. Specifications

AIR-AP3802I-H-K9 Cisco Wireless Access Point with Integrated Antennas
Product Code AIR-AP3802I-H-K9
Antennas Internal Antennas
Brand Name CISCO
Interfaces

- 2 Ethernet ports

- 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)

- CAT 5e cabling

- Higher-quality 10GBASE-T (CAT 6/6a) cabling

- 100/1000BASE-T autosensing (RJ-45 - AUX port)

- Management console port (RJ-45)
Features

- 4x4 MU-MIMO with three spatial streams

- MRC - 802.11ac beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support
Regulatory Domain

H (H regulatory domain): -

2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.320 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels
System

- 1024 MB DRAM

- 256 MB flash
Item Weight 4.6 lb (2.09 kg)
Product Dimensions 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
AIR-AP3802I-H-K9 Cisco Indoor Wireless Access Point With Integrated Antennas
1) Kensington lock slot
2) Mode button
3) Console Port
4)

USB port
5)

AUX / Gigabit Ethernet port
6)

PoE / mGig port
7) 48 VDC power port

Compare to Similar Items

Models AIR-AP3802I-H-K9 AIR-AP3802E-H-K9
Antenna Internal Antenna External Antenna
Interfaces

- 2 Ethernet ports

- 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)

- CAT 5e cabling

- Higher-quality 10GBASE-T (CAT 6/6a) cabling

- 100/1000BASE-T autosensing (RJ-45 - AUX port)

- Management console port (RJ-45)

- 2 Ethernet ports

- 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)

- CAT 5e cabling

- Higher-quality 10GBASE-T (CAT 6/6a) cabling

- 100/1000BASE-T autosensing (RJ-45 - AUX port)

- Management console port (RJ-45)
Regulatory Domain

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.320 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.320 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels
