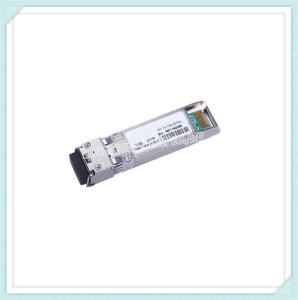

Factory Price 10G Tunable SFP+ 50GHz 80km DOM DWDM Transceiver Module

Brand Name : LR

Model Number : SFP+10G-80KM-DWDM-TUNABLE

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000 PCS/MONTH

Delivery Time : 1-2 days

Packaging Details : SEALED IN BAG

Product model : SFP+10G-80KM-DWDM-TUNABLE

Vendor Name : LR

Form Factor : SFP+

Max Data Rate : 10.3125Gbps

Wavelength : 1528.77-1563.86nm, Total of 89 channels

Warranty : 3 year warranty

Max Cable Distance : 80km

Connector : Duplex LC

Media : SMF

Optical Components : C-band tunable DWDM Laser/APD

Application : Multimode and Single-Mode Fibers

Contact Now

Overview

10G Tunable SFP+ DWDM 50GHz Transceiver (SMF, 80km, 1528.77-1563.86nm, LC, DOM)

Specification

Form Factor	Tunable DWDM SFP+	Data Rate	10 Gb/s
Wavelength	1528.77-1563.86nm, Total of 89 channels	Fiber Type	SMF
Max Distance	80 km	Optical Components	C-band tunable DWDM Laser/APD
Transmitter Power	-1 ~ 3 dBm	Extinction ratio	> 9 dB
Receiver Sensitivity	< -24 dBm	Receiver Overload	> -7 dBm
Connector	Duplex LC	Digital Diagnostic Monitoring	Yes
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.05 kg
Application	DWDM 10GBASE-ZR/ZW 10Gb/s Ethernet DWDM 10Gb/s Fiber Channel DWDM SONET OC-192&SDH STM-64 Wide, local, and storage area networks	Compliance	IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS

Notice: When transmit distance is less than 40km, please use appropriate attenuator according to the transmit distance to assure the transceivers work.

Distance	≤ 1km	≤ 10km	≤ 15km	≤ 20km	≤ 30km	≤ 40km	≤ 50km
Attenuator	15dB	12dB	11dB	10dB	7dB	5dB	2dB

FAQ

1. How to ship the goods?

Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.

2. What’s your payment term?

We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
