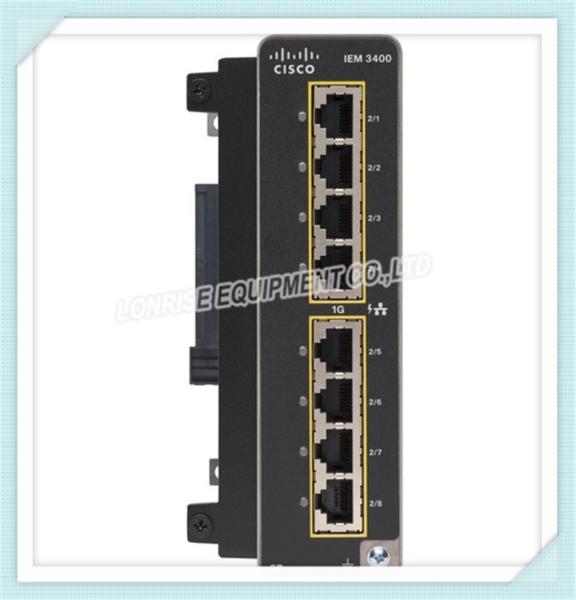

Cisco Systems Catalyst IE3400 IEM-3400-8P= Rugged 8 Port Ge PoE+ Expansion Module

Name: Cisco Systems Catalyst IE3400 IEM34008P Rugged 8 Port Ge PoE Expansion Module
Brand: Cisco
Price: 1 USD

China Cisco Systems Catalyst IE3400 IEM-3400-8P= Rugged 8 Port Ge PoE+ Expansion Module factory

Brand Name : Cisco

Model Number : IEM-3400-8P=

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000 PCS/MONTH

Delivery Time : 1-2 days

Packaging Details : SEALED IN BAG

Product model : IEM-3400-8P=

Product Type : Expansion Module

Product Series : IE3400

Network Technology : 1000Base-X

Warranty : 1 year warranty

Interfaces : 8 x RJ-45 1000Base-X Network LAN

Application : Cisco Catalyst IE3400 Rugged Series Switches

Contact Now

Overview

The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options.

Specification

Ports	Gigabit Ethernet (PoE+) x 8
Connectivity Technology	Wired
Cabling Type	Ethernet 1000Base-T
Data Link Protocol	Gigabit Ethernet
Capacity	IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ Spanning Tree Protocol instances: 128 ¦ ACL: 1500
MAC Address Table Size	8000 entries
Network / Transport Protocol	TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NETCONF, RESTCONF, NTP, ICMP, DHCP, RSTP, YANG, TACACS+, RADIUS
Features	IGMP snooping, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, static routing, Flexible NetFlow (FNF), Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, IGMP querier, Voice VLAN, Guest VLAN, Switched Port Analyzer (SPAN), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, 802.1x filtering, VLAN Trunking Protocol (VTP) v.2, EtherChannel support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2

Processor / Memory

RAM	4 GB
Flash Memory	1.5 GB
Supported Memory Cards	SD Memory Card

Expansion / Connectivity

Interfaces

8 x 1000Base-T (PoE+) - RJ-45

Miscellaneous

MTBF

1,802,010 hours

Compliant Standards

CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 61000-4-17, CAN/CSA C22.2 No. 213, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, CSA 62368-1, CB 62368-1

Power

Voltage Required	DC 9.6 - 60 V
Power Consumption Operational	23 Watt
