Half Duplex Huawei ES1D2G24SX5E 24 Port 100 / 1000BASE - X Interface Card X5E SFP

Name: Half Duplex Huawei ES1D2G24SX5E 24 Port 100 1000BASE X Interface Card X5E SFP
Brand: Huawei
Price: 1 USD

China Half Duplex Huawei ES1D2G24SX5E 24 Port 100 / 1000BASE - X Interface Card X5E SFP factory

Brand Name : Huawei

Model Number : ES1D2G24SX5E

Certification : CE

Place of Origin : China

Applications : S7700 Interface Card ES1D2G24SX5E (X5E SFP)

Ports : 24

Operating relative humidity : 5% RH to 95% RH (noncondensing)

Maximum power consumption : 84 W

Dimensions (H x W x D) : 35.1 mm *394.7 mm *426.8 mm

Communication Mode : Full-Duplex & Half-Duple

Transmission Rate : 10/100Mbps

Storage temperature : -40°C to +70°C (-40°F to +158°F)

Operating temperature : 0°C to 45°C (32°F to 113°F)

Weight : 2.82 kg (6.22 lb)

Switch Capacity : 96

Function : LACP

Private Mold : No

Lead Time : 2 business days

Contact Now

ES1D2G24SX5E-24-Port 100/1000BASE-X Interface Card (X5E, SFP)

Introduction

The ES1D2G24SX5E can be installed in:

Slots 01 to 03 in an S7703 or S7703 PoE chassis.
Slots 01 to 06 in an S7706 or S7706 PoE chassis.
Slots 01 to 12 in an S7712 chassis.

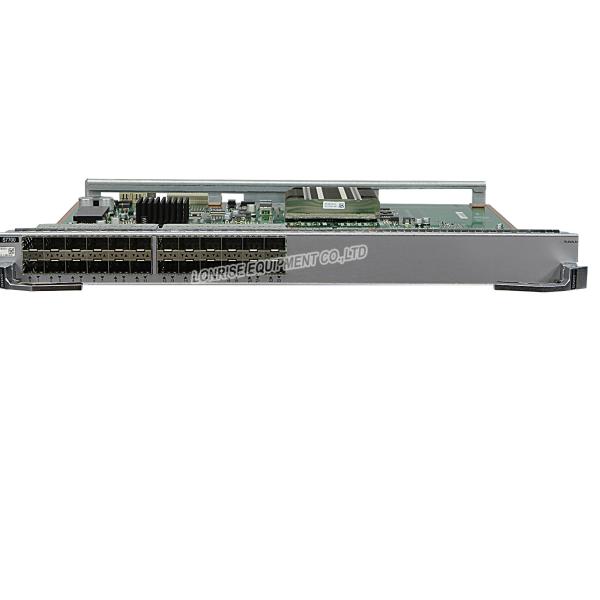

Appearance of the ES1D2G24SX5E

Functions

The ES1D2G24SX5E provides the following functions:

Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.

Functions of the ES1D2G24SX5E

Function	Description
Basic functions	Provides twenty-four GE optical ports for data access and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2G24SX5E is hot swappable.

Indicators on the ES1D2G24SX5E panel

Number	Indicator	Color	Description
1	ACT indicator of a lower optical port	Yellow	Blinking: The port is transmitting and receiving data.
2	ACT indicator of an upper optical port	Yellow	Blinking: The port is transmitting and receiving data.
3	LINK indicator of a lower optical port	Green	Steady on: A link has been established on the port.
4	LINK indicator of an upper optical port	Green	Steady on: A link has been established on the port.
5	RUN/ALM: running status indicator	Green	Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting.
		Red	Steady on: The card has failed and the fault requires manual intervention.
		Yellow	Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.)

Half Duplex Huawei ES1D2G24SX5E 24 Port 100 / 1000BASE - X Interface Card X5E SFP

Product Tags:

X5E SFP Network Interface Card

1000BASE 24 Port Interface Card

Half Duplex Huawei Interface Card

Half Duplex Huawei ES1D2G24SX5E 24 Port 100 / 1000BASE - X Interface Card X5E SFP Images
