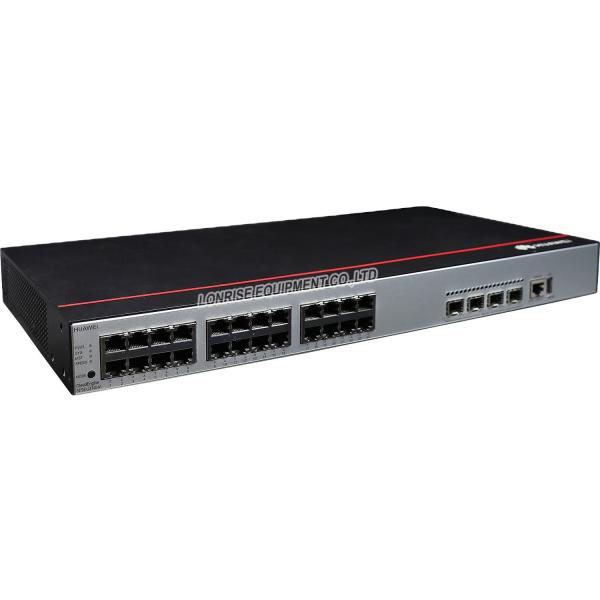

S5735 - L Huawei Network Switches 24 X 10 1000Base SFP+ Ports

Brand Name : Huawei

Model Number : CloudEngine S5735-L24T4X-A1/D1

Certification : CE

Place of Origin : China

Name : Huawei S5735-L switch, 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports

Model : S5735-L24T4X-A1

Forwarding Performance : 96 Mpps

Switching Capacity2 : 128 Gbit/s/336 Gbit/s

Fixed Ports : 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports

PoE+ : Not supported

Port : Shanghai

Communication Mode : Full-Duplex & Half-Duplex

Condition : 100% Original Brand

Heat Dissipation : Intelligent heat dissipation

Contact Now

Huawei S5735 - L switch 24 x 10 / 100 / 1000Base - T ports 4 x 10 GE SFP+ ports

S5735-L24T4X-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

S5735-L24T4X-A Specification
Forwarding Performance 96 Mpps
Switching Capacity2 128 Gbit/s/336 Gbit/s
Fixed Ports 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
MAC Features MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF) Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

the comparison.

Product Model

S5735-L12T4S-A

S5735-L12P4S-A

S5735-L24T4S-A

S5735-L24P4S-A

S5735-L24T4X-A

S5735-L24P4X-A

 S5735-L48T4S-A

S5735-L48T4X-A

S5735-L48P4X-A

 S5735-L32ST4X-A
Forwarding Performance 24 Mpps 42 Mpps 96 Mpps 78 Mpps 132 Mpps 108 Mpps
Switching Capacity2 32 Gbit/s/336 Gbit/s 56 Gbit/s/336 Gbit/s 128 Gbit/s/336 Gbit/s 104 Gbit/s/432 Gbit/s 176 Gbit/s/432 Gbit/s 144 Gbit/s/432 Gbit/s
Fixed Ports 12 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported

S5735 - L Huawei Network Switches 24 X 10 1000Base SFP+ PortsS5735 - L Huawei Network Switches 24 X 10 1000Base SFP+ Ports
