N9K C93180YC EX Networking Switch are The Next Generation Of Fixed Cisco Switches.

Brand Name : Cisco

Model Number : N9K-C93180YC-EX

Certification : CE

Place of Origin : CHINA

MOQ : 1pc

Products Status : Stock

Part Number : N9K-C93180YC-EX

Ports : 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

CPU : 4 cores

System memory : 24 GB

System buffer : 40 MB

Type : Switch

Weight : 17.2 lb (7.8 kg)

Maximum power : 470W

Contact Now

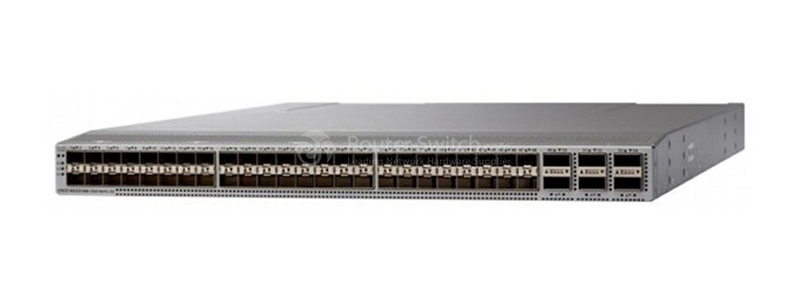

N9K-C93180YC-EX

N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.

N9K-C93180YC-EX Specification

Ports 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds 1/10/25-Gbps speeds
CPU 4 cores
System memory 24 GB
SSD drive 64 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC) 210W
Maximum power (AC/DC) 470W
Input voltage (AC) 100 to 240V
Input voltage
(high-voltage AC [HVAC])
200 to 277V
Input voltage (DC) –48 to –60V
Input voltage
(high-voltage DC [HVDC])
–240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
Physical dimensions
(H x W x D)
1.72 x 17.3 x 22.5 in.
(4.4 x 43.9 x 57.1 cm)
Acoustics 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed
RoHS compliance Yes
MTBF 390,330 hours
Maximum number of Longest Prefix Match (LPM) routes 896,000
Maximum number of IP host entries 896,000
Maximum number of MAC address entries 256,000
Maximum number of multicast routes 32,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups

Shipping: 8,000

Maximum: 32,000

Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch 16
Maximum number of Access Control List (ACL) entries

Per slice of the forwarding engine:

4000 ingress

2000 egress

Total (2 forwarding slices):

8000 ingress

4000 egress

Maximum number of VLANs 3,967
Number of Virtual Routing and Forwarding (VRF) instances

Shipping: 1,000

Maximum: 16,000

Maximum number of ECMP paths 64
Maximum number of port channels 512
Maximum number of links in a port channel 32
Number of active SPAN sessions 4
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances 3,967
Maximum number of Hot-Standby Router Protocol (HSRP) groups 490
Number of Network Address Translation (NAT) entries 1,023
Maximum number of Multiple Spanning Tree (MST) instances 64
Flow-table size used for Cisco Tetration Analytics platform 64,000
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
Weight (without power supplies or fans) 17.2 lb (7.8 kg)
