S5720S 52X PWR LI AC Huawei S5700 Series Switches 48 Ethernet 10/100/1000 Ports

LonRise Equipment Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

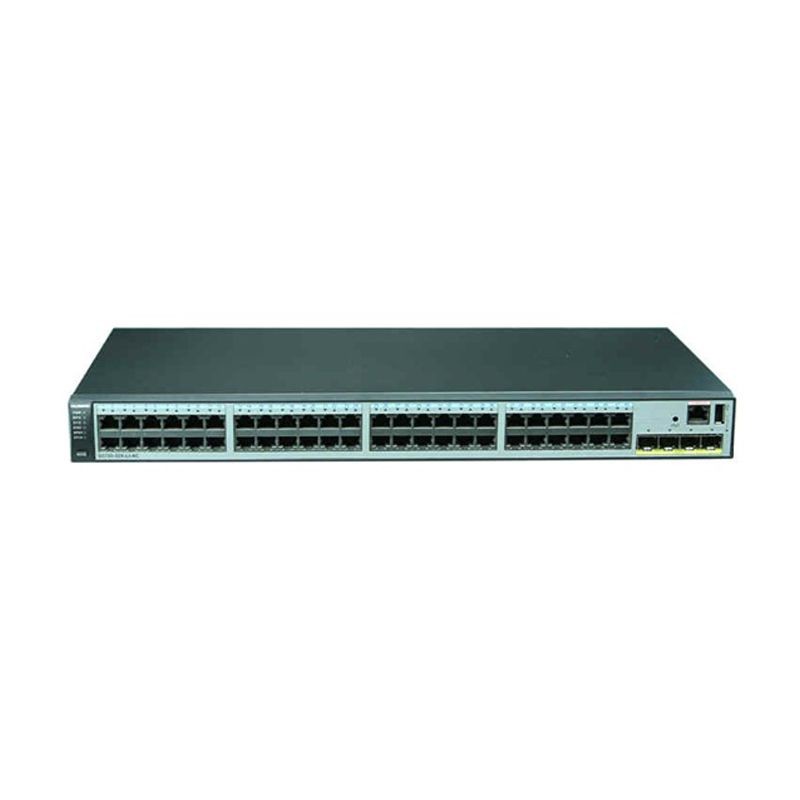

S5720S 52X PWR LI AC Huawei S5700 Series Switches 48 Ethernet 10/100/1000 Ports

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : S5720 28TP PWR LI AC

Certification : CE

Place of Origin : CHINA

name : S5720S 52X PWR LI AC

model : S5720S 52X PWR LI AC Huawei S5700 Series Switches

Connector type : LC/PC

Warrranty : 1 year

shipping : DHL&FeDex

Software and Hardware Attributes : Hardware

Product Line : Enterprise Networking

Product Family : Campus Switch & WLAN

Sub Product Family : Fixed Switch

Contact Now

S5720S-52X-PWR-LI-AC Overview

S5720S-52X-PWR-LI-AC - Huawei S5700 Series Switches.S5720S-52X-PWR-LI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)

S5720S 52X PWR LI AC Huawei S5700 Series Switches 48 Ethernet 10/100/1000 Ports

Table 1 shows the Quick Specs.

Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 38 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: 7 kV
Power supply surge protection 6 kV in differential mode, 6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight (including packaging materials) 5.9 kg (13.01 lb)
Stack ports Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)
  • ● Without PoE: 63.5 W
  • ● 100% PoE loads: 464.3 W (system power consumption: 94.7 W, PoE: 369.6 W)

Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
42.2 W
Storage temperature -40°C to +70°C (-40F to +158F)
Noise under normal temperature (27°C, sound power) less than 48.3 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
S5720S 52X PWR LI AC Huawei S5700 Series Switches 48 Ethernet 10/100/1000 Ports
S5720S 52X PWR LI AC Huawei S5700 Series Switches 48 Ethernet 10/100/1000 Ports
